Ground Screws & screw Piles - The Complete Guide
Ground screws are engineered, torque-installed foundation systems designed to transfer structural loads safely into the ground without the need for concrete footings. Installed mechanically, they achieve load capacity through soil engagement along the shaft and thread profile, combined with friction and bearing resistance developed over the embedded length.
For practical applications and installation services, see our Ground Screws Auckland page
This resource explains the structural mechanics, load design considerations, compliance requirements, and soil interactions that determine how ground screw foundations perform.
What Are Ground Screws?

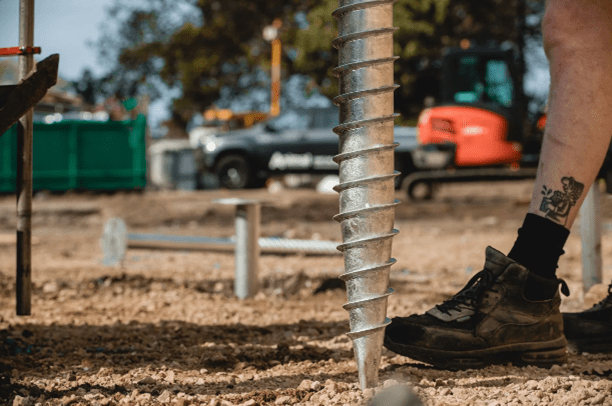

Ground screws (also known as screw piles) are steel foundation elements mechanically rotated into the ground using hydraulic drive equipment.
A typical ground screw consists of:
- A structural steel shaft
- A formed load-bearing thread profile along the embedded section
- A head connection designed to support timber or steel framing
- Optional extension sections to achieve greater embedment depth
The continuous thread profile allows the screw to advance into the soil while developing resistance through soil engagement along the shaft and thread geometry. Unlike driven piles, ground screws displace soil through controlled rotation rather than impact.
This installation method enables precise embedment depth and measurable installation torque during installation.
For application-specific examples, see: Ground Screw Applications
How Ground Screws Transfer Load
Ground screw performance is governed by how loads are transferred into surrounding soil.
Three primary load conditions are considered in structural design:
1. Axial Compression
Axial compression refers to downward loads imposed by the structure above, including dead load (self-weight) and live load (occupancy, imposed loads).
Compression capacity is influenced by:
- Shaft diameter
- Thread geometry and profile
- Soil bearing strength
- Installation depth
- Soil density and cohesion
Ground screws develop compression resistance through a combination of soil bearing along the thread profile and shaft friction over the embedded length.
2. Uplift Resistance
Uplift forces occur due to wind loading, particularly in exposed NZ sites, or due to structural tension forces.
Ground screws resist uplift by mobilising soil resistance along the threaded section and shaft interface. Adequate embedment depth is critical to ensure sufficient confinement and resistance.
Insufficient embedment reduces uplift capacity significantly.
3. Lateral Resistance
Lateral loads arise from wind, seismic forces, and horizontal structural movement.
Lateral capacity depends on:
- Shaft diameter and stiffness
- Embedment depth
- Soil lateral resistance
- Structural bracing above ground
Lateral resistance is governed by soil reaction against the embedded shaft and the stiffness of the overall structural system.
For detailed breakdown of how load capacity is calculated and correlated with installation torque, see: Ground Screw Load Capacity
Load Capacity: Key Design Variables
Ground screw capacity cannot be determined by diameter alone.
Load performance depends on a combination of interacting variables:
- Soil classification and shear strength
- Shaft diameter and thread geometry
- Embedment depth
- Installation torque achieved
- Load type (compression, uplift, lateral)
Capacity is developed through soil engagement along the threaded section and shaft interface, with installation torque serving as an important field indicator of soil resistance and embedment performance.
Preliminary load tables provide guidance for early-stage planning. However, site-specific soil conditions and structural loads must be considered for accurate specification.
Where structural certainty is required, engineering assessment should confirm capacity relative to design actions.
Full technical discussion here: Ground Screw Load Capacity
Soil Conditions in New Zealand
New Zealand soil conditions vary significantly by region and site history. Ground screw performance is directly influenced by these conditions.
Clay Soils
Common in Auckland and surrounding regions, clay soils exhibit:
- Variable moisture content
- Potential expansion and contraction
- Reduced bearing strength when saturated
Proper embedment and torque monitoring are critical in clay environments.
Sandy or Granular Soils
Granular soils typically offer:
- Good drainage
- Consistent bearing when compacted
- Variable lateral resistance depending on density
Shaft diameter and embedment depth influence performance in these conditions.
Fill and Disturbed Ground
Sites containing uncontrolled fill or disturbed soil require careful evaluation. Bearing capacity may be inconsistent, and engineering input may be necessary.
Sloping Sites
Sloping terrain introduces:
- Uneven load distribution
- Increased lateral forces
- Variable embedment depth requirements
A deeper breakdown of NZ soil interaction is available here: Ground Screw Types
Installation Methodology
Ground screws are installed using hydraulic drive systems that rotate the screw into the soil.
Critical installation factors include:
- Vertical alignment control
- Embedment depth accuracy
- Torque monitoring
- Extension integrity
Installation torque provides an indicator of soil resistance. When interpreted correctly, torque can correlate with load capacity.
Improper installation — including inadequate depth or misalignment — can compromise structural performance.
Installation torque and embedment depth must be verified during construction. If you require professional installation, our Ground Screw Installers Auckland team provides supply and installation under one accountable scope.
Detailed installation guidance: Ground Screw Installation Methodology
Corrosion Protection & Durability
Durability is influenced by environmental exposure and soil chemistry.
In NZ applications, ground screws typically rely on:
- Hot-dip galvanisation
- Engineered corrosion allowances
- Consideration of coastal exposure zones
Service life expectations should align with NZ durability requirements for structural components.
More detail on corrosion performance:
Ground Screw Corrosion Protection
NZ Building Code & Compliance Considerations
Ground screw foundations may require building consent or engineering documentation depending on:
- Structure type
- Structural load magnitude
- Site classification
- Foundation complexity
Compliance pathways may involve:
- Engineering design confirmation
- Producer statements (PS1 / PS4)
- Load capacity documentation
Ground screws can align with NZ Building Code requirements when correctly specified and documented.
Full compliance discussion:
Ground Screws NZ Building Code Compliance
Ground Screws vs Concrete Foundations
Both systems are structural solutions.
Key differences include:
- Immediate load-bearing vs curing time
- Mechanical installation vs excavation
- Reduced spoil and site disruption
- Programme efficiency
Concrete may remain appropriate in high-load or heavily engineered scenarios.
Detailed comparison here:
Ground Screws vs Concrete Foundations
Applications Across Residential and Rural Construction
Ground screws are commonly used for:
- Deck foundations
- Cabins and sleepouts
- Tiny homes
- Farm structures
- Fencing
- Bollards and pole installations
- Temporary buildings
Application-specific guidance:
- Engineering design confirmation
- Producer statements (PS1 / PS4)
- Load capacity documentation
Application-specific guidance:
Ground Screw Applications
When Ground Screws May Not Be Suitable
Ground screws may require additional engineering consideration where:
- Organic soils dominate
- Heavy multi-storey loads are present
- Deep geotechnical uncertainty exists
- Seismic design categories are elevated
Engineering assessment should determine suitability on a project-specific basis.
Summary
Ground screws are engineered structural elements that provide a mechanically installed alternative to traditional concrete foundations.
Their performance depends on correct specification, appropriate embedment, soil awareness, installation accuracy, and compliance alignment.
