Ground Screws and Soil Conditions in NZ
The ground screws supplied by BaseDrive are engineered screw foundations designed to be rotated directly into the ground. Unlike driven piles or cast-in-place concrete, these structural screws develop capacity through their threaded geometry and embedded shaft interacting with the surrounding soil mass.
Soil conditions therefore become one of the most important determinants of performance. This article examines how NZ soil types influence screw foundation behaviour, the site conditions that commonly introduce risk, and when a project should shift from standard installation to an engineering-led approach.
1. How Soil Type Influences Screw Foundation Performance
Thread Engagement and Soil Resistance
A ground screw transfers load into the soil through its threaded profile and the friction developed along the embedded shaft. As the screw is rotated into the ground, the threads displace and compact surrounding material, mobilising resistance in compression and uplift.
Capacity is therefore governed by how effectively the threaded sections engage competent strata. Performance improves when the screw penetrates beyond weak or disturbed layers into soil capable of sustaining applied stress without excessive movement.
- Thread diameter influences load distribution into soil
- Continuous shaft embedment contributes frictional resistance
- Load transfer occurs along the entire engaged profile
The screw functions as a continuous structural element rather than relying on isolated plate components.
Soil Strength and Density
Soil strength determines how much load the surrounding ground can resist before shear deformation occurs. Dense, well-compacted soils generally provide higher resistance, while loose or variable soils may produce inconsistent behaviour.
Two sites that appear similar at surface level can respond very differently once installation depth increases. This is why depth selection and installation verification are critical to predictable performance.
- Higher density soils typically provide stronger bearing resistance
- Layered profiles can cause variable torque during installation
- Consistent strata engagement improves reliability
Soil strength ultimately governs how effectively the screw foundation can mobilise resistance under load.
Moisture and Seasonal Variability
Many NZ soils change behaviour with moisture content. Saturated conditions can reduce effective stress in soil, lowering shear resistance and altering how loads are transferred around the threaded sections.
The risk is not the presence of moisture itself, but reliance on shallow embedment where seasonal variability may influence performance over time.
- Clay-rich soils can soften significantly when saturated
- Near-surface confinement may vary seasonally
- Deeper embedment reduces variability exposure
Consistent engagement into stable soil layers is the primary mitigation strategy.

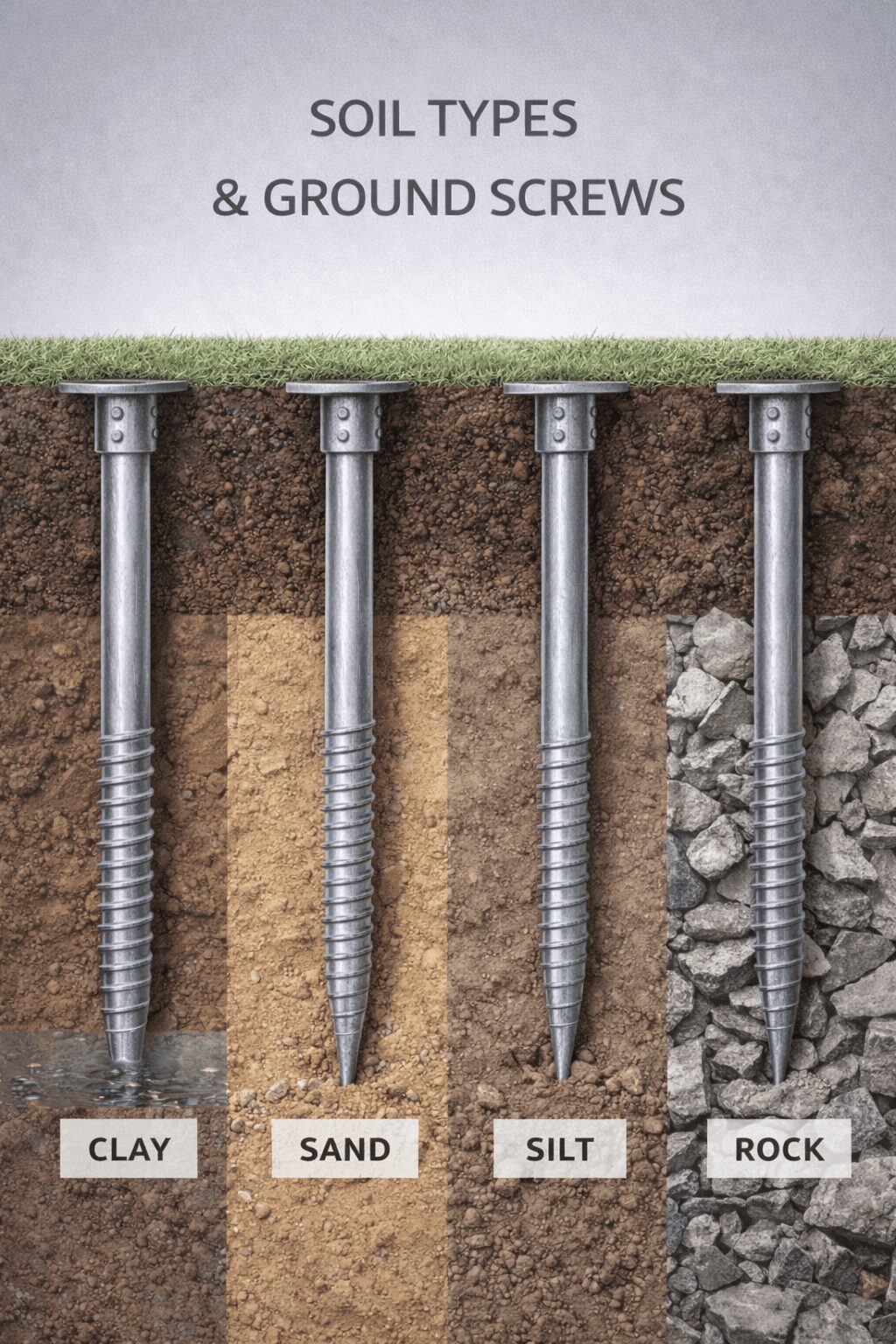

2. Common NZ Soil Conditions in Practice
Clay Soils
Clay soils are widespread in many parts of New Zealand, particularly in urban development areas. They can provide reliable resistance when properly engaged, but their strength can vary with moisture and depth.
For screw foundations, the priority is ensuring the threaded section penetrates beyond soft surface material into stable clay layers capable of sustaining structural loads.
- Moisture-sensitive behaviour requires adequate embedment
- Disturbed clay layers may reduce predictable resistance
- Verification during installation supports consistency
Clay is workable for screw foundations when depth and engagement are treated correctly.
Granular and Mixed Soils
Granular soils such as sand, scoria, and mixed fill profiles can provide strong bearing conditions when compacted and dense. However, loose granular layers may reduce lateral stiffness and produce variable installation resistance.
The threaded profile of a screw foundation can compact surrounding granular material during installation, but consistent performance depends on reaching sufficiently dense layers.
- Compacted granular soils often perform well
- Loose layers may require deeper embedment
- Lateral resistance depends on soil density
Surface appearance alone is rarely a reliable indicator of deeper soil conditions.
Fill and Disturbed Ground
Many residential sections in NZ include cut, fill, or reworked ground from previous development. The challenge with fill is variability rather than uniform weakness.
Where soil consistency changes across a footprint, screw embedment depth and layout consistency become critical to avoid differential behaviour.
- Fill profiles may vary across short distances
- Variable resistance can create uneven settlement risk
- Engineering input may be required for consented structures
Unknown ground history should be treated as a design variable rather than an assumption.
Fast response • Clear pricing • Expert Support
3. When a Site Should Be Engineering-Led
Indicators of Elevated Ground Risk
While many projects can proceed with standard specification and installation control, certain site conditions require a more deliberate, assessment-led approach.
This ensures the screw foundation system is proportioned and verified in line with the real ground conditions present on site.
- Uncontrolled or unknown fill depth
- Significant cut-to-fill transitions
- High wind exposure affecting uplift design
- Sloping sites increasing lateral demand
Engineering-led does not mean unsuitable — it means specification must align with site reality.
Layout Consistency Across the Footprint
Even when individual screws achieve strong engagement, variation across a site can introduce differential behaviour. Consistency in embedment depth and engagement quality supports predictable structural performance.
The goal is uniform interaction between the screw geometry and competent soil across the entire foundation layout.
- Uniform embedment improves overall stability
- Consistent installation controls reduce variability
- Competent strata engagement is the key objective
Predictable ground engagement across the footprint is what supports long-term performance.
Further Technical Reading
Soil conditions directly influence how screw foundations mobilise resistance in compression, uplift, and lateral loading. In NZ environments where clay variability, granular density changes, and fill profiles are common, correct embedment and verification are essential to reliable performance.
For a detailed explanation of how screw foundations transfer load mechanically, refer to the engineering overview of ground screws.
To understand how load capacity is assessed and the variables that govern performance, review the ground screw load capacity cluster.
For guidance on installation methodology and torque monitoring in practice, see the installation methodology article.
Where compliance pathways or formal verification are required, refer to the NZ Building Code and compliance considerations cluster.
